Redis (Remote Dictionary Server) is a blazing-fast, open-source, in-memory key-value store that’s become a go-to choice for building real-time, high-performance applications.
Despite being single-threaded, a single Redis server can handle over 100,000 requests per second.
But, how does Redis achieve such incredible performance with a single-threaded architecture?
In this article, we’ll break down the 5 key design choices and architectural optimizations that make Redis so fast and efficient:
In-Memory Storage: Data lives entirely in RAM, which is orders of magnitude faster than disk.

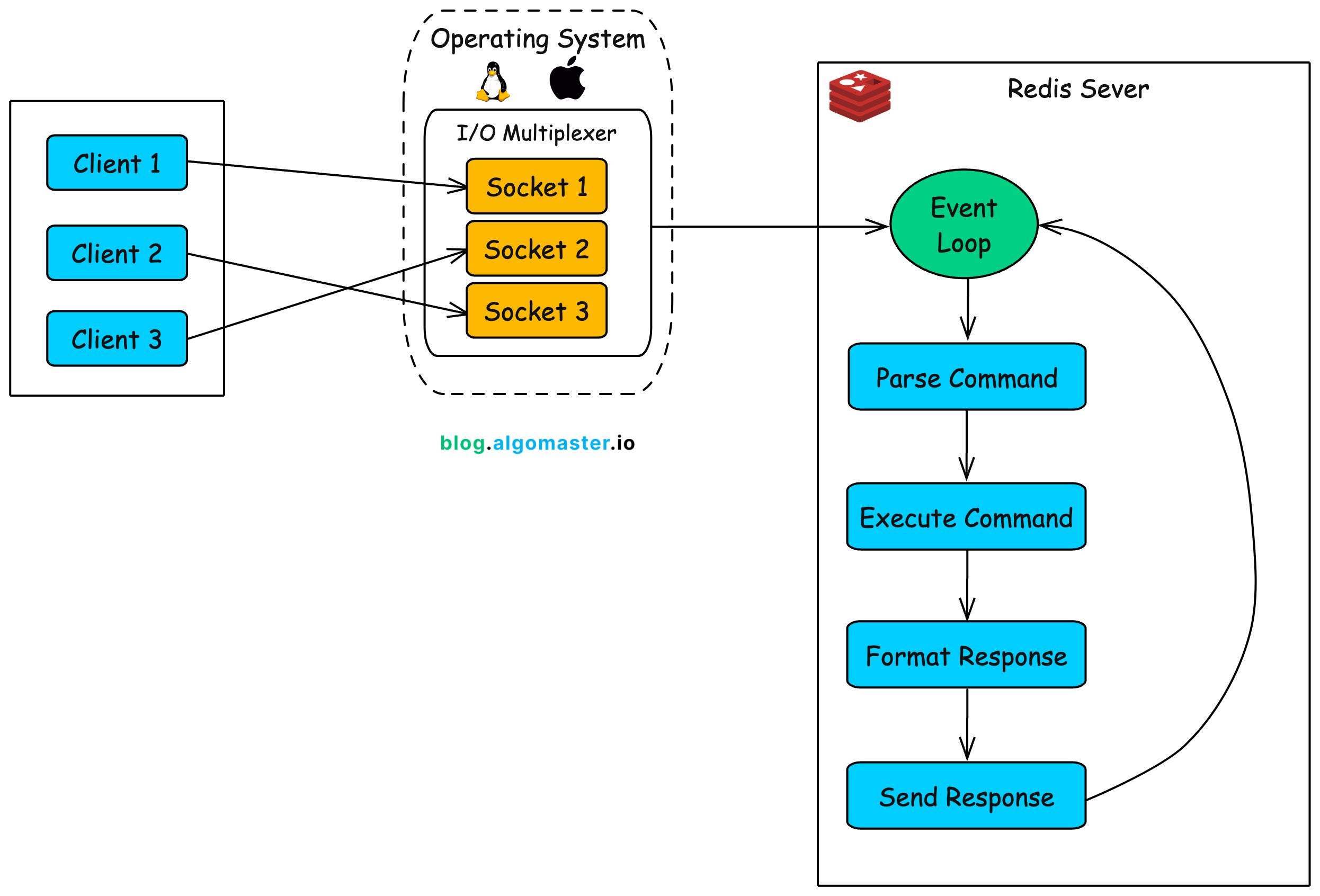

Single-Threaded Event Loop: Eliminates concurrency overhead for consistent, low-latency performance.

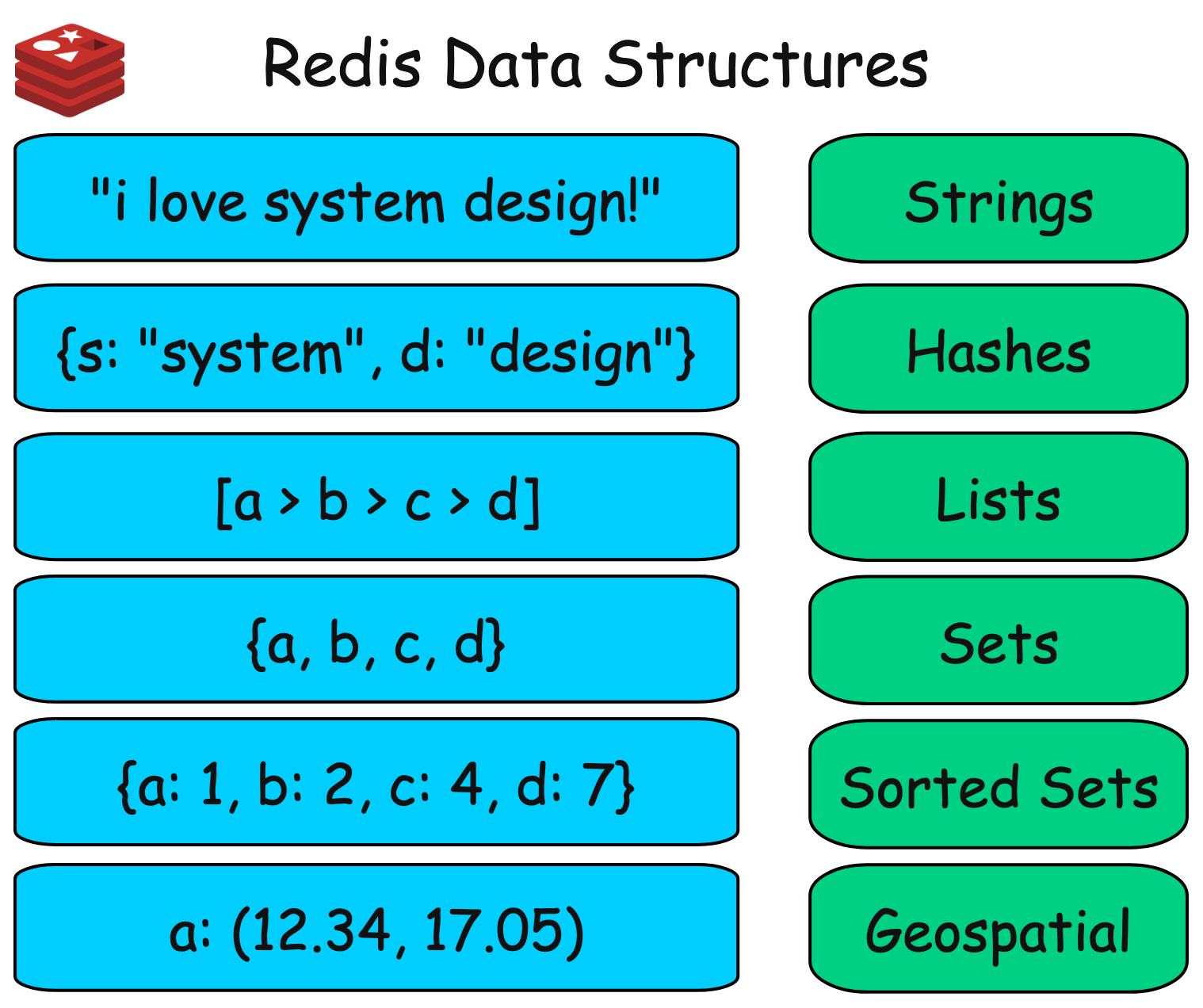

Optimized Data Structures: Built-in structures like hashes, lists, and sorted sets are implemented with speed and memory in mind.
I/O Efficiency: Event-driven networking, pipelining, and I/O threads help Redis scale to thousands of connections.
Server-Side Scripting: Lua scripts allow complex operations to run atomically, without round trips.
Let’s get started!
1. In-Memory Storage
The single most important reason Redis is so fast comes down to one design decision:
All data in Redis lives in RAM.
Unlike traditional databases that store their data on disk and read it into memory when needed, Redis keeps the entire dataset in memory at all times.
Even with a fast SSD, reading from disk is thousands of times slower than reading from RAM.
So when Redis performs a GET
, it doesn’t wait for disk I/O. It simply follows a pointer in memory—an operation that completes in nanoseconds, not milliseconds.
Redis doesn’t just store data in RAM, it stores it efficiently.
Small values are packed into compact memory formats (
ziplist
,intset
,listpack
)These formats improve CPU cache locality, letting Redis touch fewer memory locations per command
But There’s a Trade-Off…
While in-memory storage gives Redis its speed, it also introduces two important limitations:
1. Memory-Bound Capacity
Your dataset size is limited by how much RAM your machine has. For example:
On a 32 GB server, Redis can only store up to 32 GB of data (minus overhead)
If you exceed this, Redis starts evicting keys or rejecting writes unless you scale horizontally
To deal with this, Redis offers key eviction policies like:
Least Recently Used (LRU)
Least Frequently Used (LFU)
Random
Volatile TTL-based eviction
You can also shard your dataset across a Redis Cluster.
2. Volatility & Durability
RAM is volatile. It loses data when the server shuts down or crashes. That’s risky if you’re storing anything you care about long term.
Redis solves this with optional persistence mechanisms, allowing you to write data to disk periodically or in real time.
Redis provides two main persistence models to give you durability without compromising performance:
RDB (Redis Database Snapshot)
Takes point-in-time snapshots of your data
Runs in a forked child process, so the main thread keeps serving traffic
Good for backups or systems that can tolerate some data loss
AOF (Append-Only File)
Logs every write operation to disk
Offers configurable
fsync
options:Every write (safe but slow)
Every second (balanced)
Never (fast but risky)
Supports AOF rewriting in the background to reduce file size
These persistence methods are designed to run asynchronously, so the main thread never blocks.
