Proxy vs Reverse Proxy (Explained with Examples)

Proxies and reverse proxies are servers that sit between clients and servers to improve security, privacy and performance.

A Proxy server (sometimes called a Forward proxy) acts on behalf of clients, while a Reverse Proxy acts on behalf of servers.

Visualized using Multiplayer

In this article, we’ll break down the key differences between proxies and reverse proxies and how they function with real-world examples and simple illustrations.

---

If you’re finding this newsletter valuable and want to deepen your learning, consider becoming a paid subscriber.

As a paid subscriber, you'll receive an exclusive deep-dive article every week, access to a structured System Design Resource (100+ topics and interview questions), and other premium perks.

---

1. What is a Proxy Server?

A proxy is an entity that has the authority to act on behalf of another.

In computer terms, a proxy (or a forward proxy) is a server that acts on behalf of clients on a network.

When you send a request, like opening a webpage, the proxy intercepts it, forwards it to the target server, and then relays the server’s response back to you.

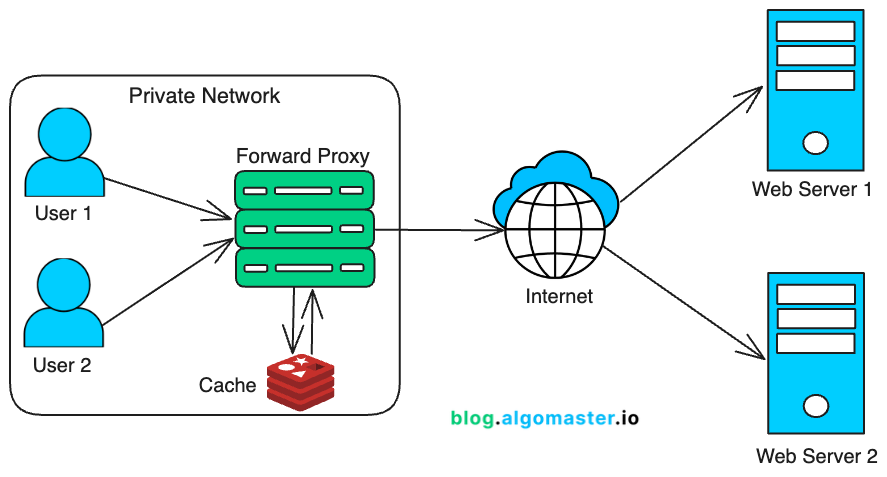

Visualized using Multiplayer

Think of proxy server as a middleman that sits between a private network and the public internet.

Let’s walk through a simplified example of how a proxy server handles a request:

1. The user types a website URL into their browser. The request is intercepted by the proxy server instead of going directly to the website.

2. The proxy server examines the request to decide if it should forward it, deny it, or serve a cached copy.

3. If the proxy decides to forward the request, it contacts the target website. The website sees only the proxy server’s IP, not the user’s.

4. When the target website responds, the proxy receives the response and relays it to the user.

Key Benefits of Proxy Servers:

1. Privacy and Anonymity: Proxy servers hide your IP address by using their own, so the destination server cannot know your real location or identity.

2. Access Control: Organizations use proxies to enforce content restrictions, monitor internet usage.

3. Security: Proxies can filter out malicious content and block suspicious sites, providing an additional layer of security.

4. Improved Performance: Proxies cache frequently accessed content, reducing latency and improving load times for websites.

Is a VPN the same as a Proxy?

No. While both hide your IP, a VPN encrypts all your internet traffic, making it more secure. A proxy only forwards specific requests without necessarily encrypting them.

Real-World Applications of Proxy Servers

1. Bypassing Geographic Restrictions

One of the most common uses of proxy servers is bypassing geographic restrictions on websites and content.

Streaming services, for instance, often offer different content based on a user’s location. With a proxy server based in the target region, you can access that region’s content library as if you were a local user.

Visualized using Multiplayer

Example: Suppose you’re in India and want to access the US library of a streaming platform (eg.. Netflix). By connecting to a proxy server located in the US, your request to the streaming platform will appear to be coming from the US, allowing access to its content as if you were a US-based viewer.

2. Speed and Performance Optimization (Caching)

Proxies can store cached versions of frequently accessed content, enabling faster load times and reducing bandwidth usage.

Visualized using Multiplayer

When a user requests cached content, the proxy server serves the stored copy rather than fetching it from the destination server, which reduces latency.

To avoid stale content, it uses a Time-To-Live (TTL) value, automatically expiring cached data after the configured time

Example: An organization with hundreds of employees frequently accessing the same online resources can deploy a caching proxy. This proxy caches common websites in it’s database, so subsequent requests are served quickly from the proxy’s storage, saving time and bandwidth.

---

2. What is a Reverse Proxy?

A reverse proxy is the reverse of a forward proxy. It regulates traffic coming into a network.

It sits in front of servers, intercepts client requests and forwards them to backend servers based on predefined rules.

Visualized using Multiplayer

Think of a reverse proxy as a gatekeeper. Instead of hiding clients from the server, it hides servers from clients.

Allowing direct access to servers can pose security risks, exposing them to threats like hackers and DDoS attacks.

A reverse proxy mitigates these risks by creating a single, controlled point of entry that filters and regulates incoming traffic all while keeping server IP addresses hidden.

With a reverse proxy in place, clients no longer interact directly with the servers. They only communicate with the reverse proxy.

Let’s walk through a simplified example of how a proxy server handles a request:

1. A user types a website URL into their browser, which sends a request to the server.

2. The reverse proxy server receives the request before it reaches the backend servers.

3. Based on predefined rules (like load balancing or server availability), the reverse proxy forwards the request to the appropriate backend server.

4. The backend server processes the request and sends a response back to the reverse proxy.

5. The reverse proxy relays the response to the client, with the client never directly interacting with the backend servers.

Key Benefits of Reverse Proxy

• Enhanced Security: By acting as a protective layer, a reverse proxy hides backend servers from clients, reducing the risk of attacks directly targeting backend infrastructure.

• Load Balancing: A reverse proxy can distribute incoming requests evenly across multiple backend servers, improving system reliability and preventing server overload.

• Caching Static Content: Reverse proxies can cache static assets like images, CSS, and JavaScript, reducing the need to fetch these files from the backend repeatedly.

• SSL Termination: Reverse proxies can handle SSL encryption, offloading this work from backend servers.

• Web Application Firewall (WAF): Reverse proxies can inspect incoming requests, acting as a firewall to detect and block malicious traffic.

Real-World Example of a Reverse Proxy

Cloudflare’s reverse proxy is widely used by global websites and applications to boost speed, security, and reliability.

It’s Web Application Firewall (WAF) and DDoS protection blocks malicious traffic before it reaches the site’s servers, safeguarding against attacks and improving uptime.

Cloudflare’s global content caching caches static and dynamic content at over 200 data centers around the world, storing frequently accessed files (like images, CSS, and JavaScript) closer to users. This significantly reduces load times and latency, as requests don’t always need to travel to the origin server.

Setting Up a Reverse Proxy with Nginx

One of the most popular reverse proxy tools is Nginx.

Here’s how you can set up a basic reverse proxy configuration using Nginx on a Linux server.

1. Install Nginx

sudo apt update sudo apt install nginx

2. Add Reverse Proxy Configuration

server {
    listen 80;

    location / {
        proxy_pass http://backend_server_ip;
        proxy_set_header Host $host;
        proxy_set_header X-Real-IP $remote_addr;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
    }
}

3. Test and Reload Nginx

sudo nginx -t sudo systemctl reload nginx

Load Balancing Across Multiple Servers

For a high-traffic website, spreading incoming requests across multiple backend servers is crucial.

A reverse proxy can implement load balancing algorithms such as round-robin, least connections, or IP hash, ensuring optimal distribution of traffic.

upstream backend_servers {
    ip_hash;
    server backend1.example.com;
    server backend2.example.com;
    server backend3.example.com;
}

server {
    listen 80;
    server_name example.com;

    location / {
        proxy_pass http://backend_servers;
        proxy_set_header Host $host;
        proxy_set_header X-Real-IP $remote_addr;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
    }
}

Nginx uses round robin by default. To change it, we can simply add the required algorithm (eg.. ip_hash) in the upstream block.

With this configuration, Nginx will balance requests among backend1, backend2, and backend3, ensuring no single server becomes overwhelmed.

---

3. Summary

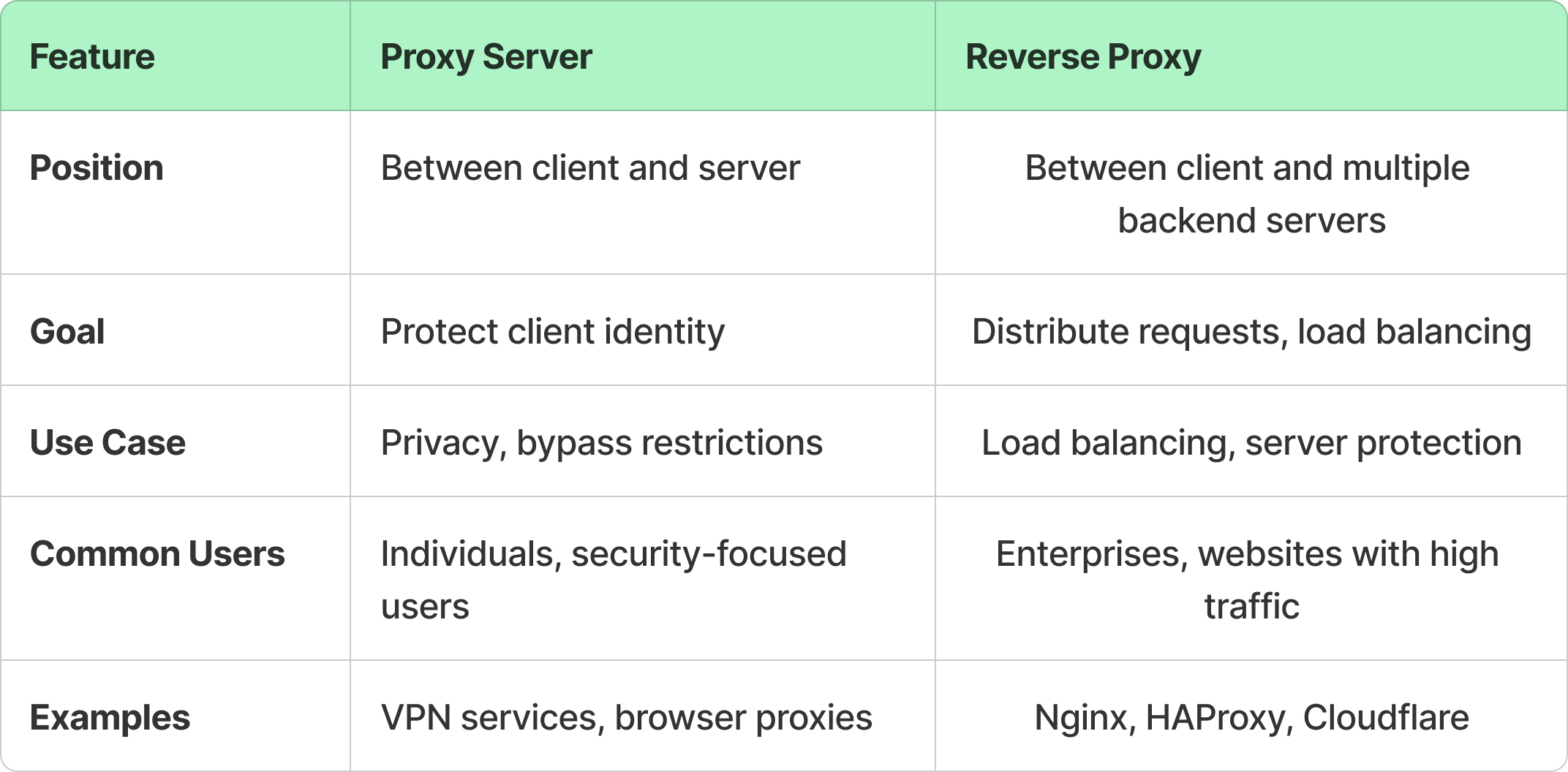

Here’s a table summarizing the key details:

---
